vPANEL ALC Panel (Standard Panel) for Singapore
Comes in standard length of 3 metre, 4 metre and 6 length.

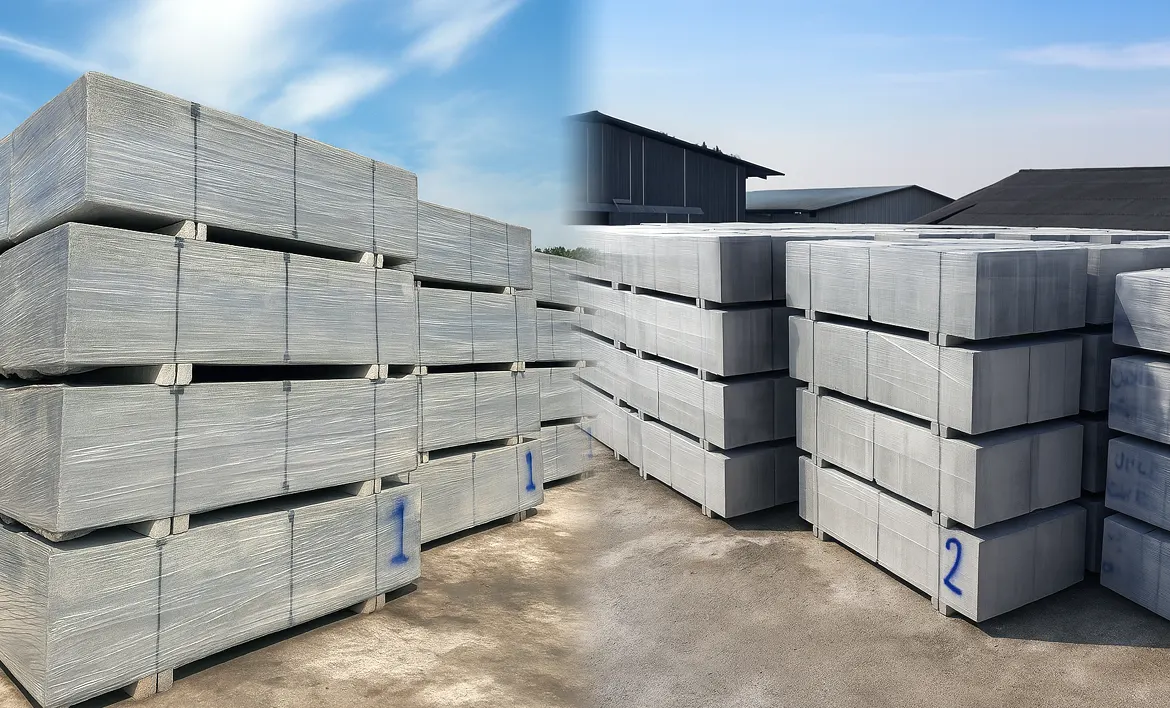

- Our ALC panels are manufactured at our 5 acre factory in Kulai, Johor, Malaysia and delivered to Singapore within 2 days.
- Using our advance formulation, panel is naturally dried cured for 7 days before sending to site.
ALC Panel Installation Option
OPTION 1
Horizontal Installation
Benefit of horizontal installation is:
- Lower risk of hairline crack between panel joint
- Lower risk of water seepage related problem
- Close to zero wastage as left over panel length can be used up especially at soffit slab connection
OPTION 2
Vertical Installation
Benefit of vertical ALC Panel installation is:
- Less cutting panel works on site
- In some cases, might be easier to install as do not need hoisting of panel.
OPTION 2
Vertical Installation
Benefit of vertical installation is:
- Less cutting panel works on site
- In some cases, might be easier to install as do not need hoisting of panel.

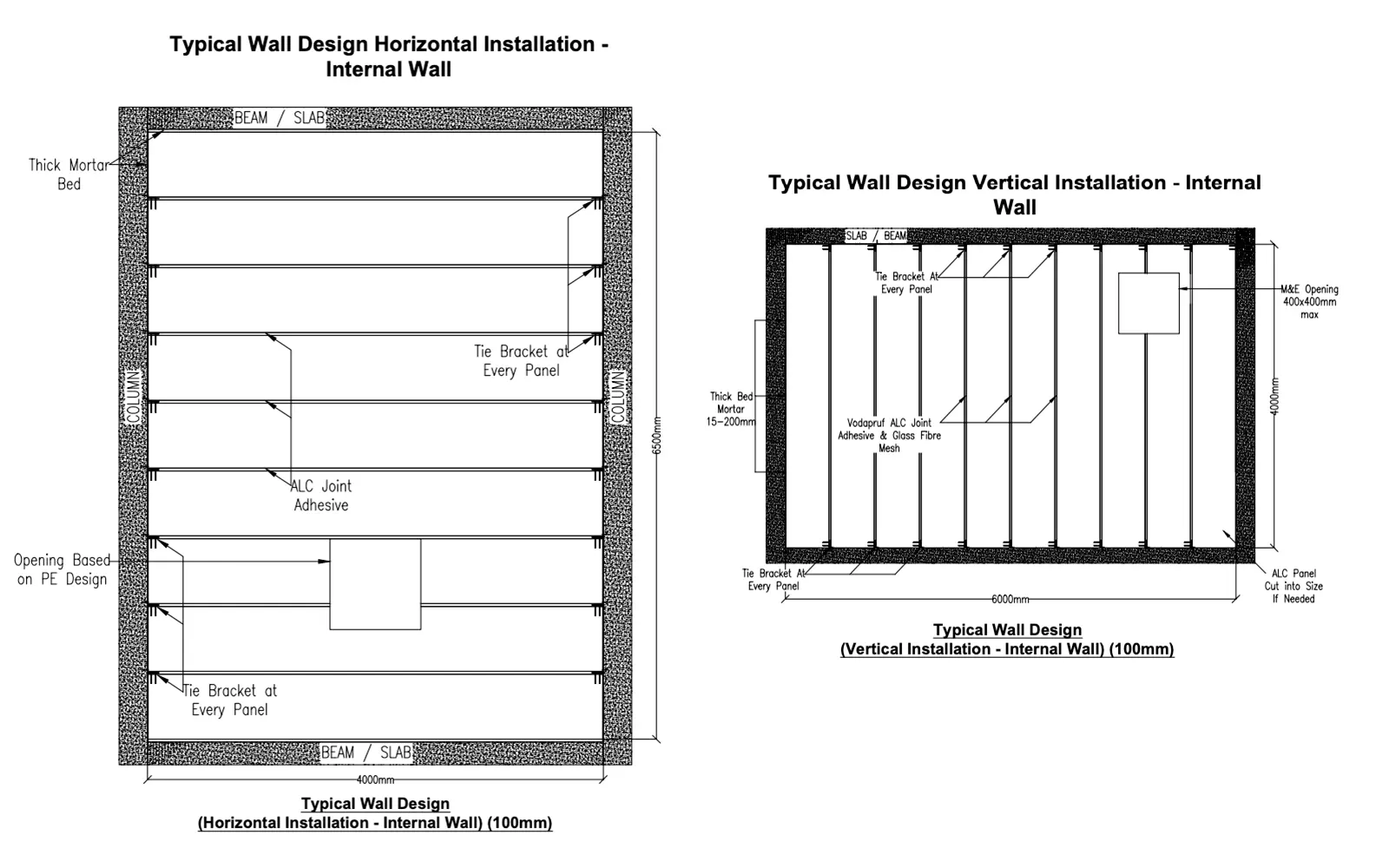

Full Detail Drawing
Technical Drawing Download
Access the complete technical drawings for reference and installation.
ALC Panel Installation Method

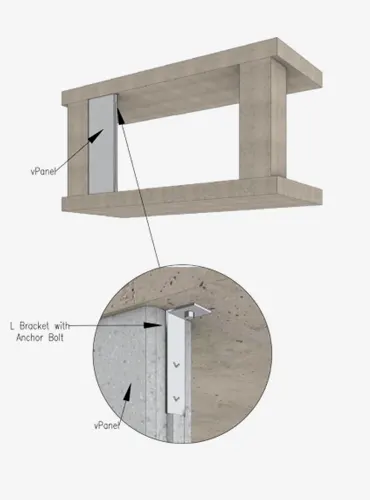

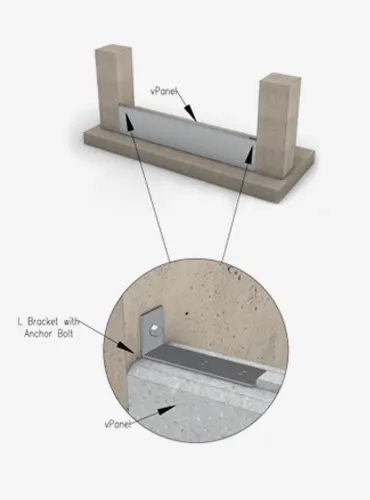

METHOD A
Installation with vNAIL
Pros and Cons
- Commonly used in Singapore ALC Panel market (regulation requirement)
- Slightly higher cost but provide ease of mind
- BENEFIT: Standardize installation method, ensuring standardize workmanship
- BENEFIT: Full system package ensuring tight specification / warranty and liability concern

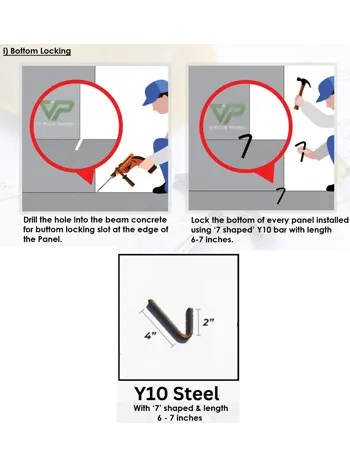

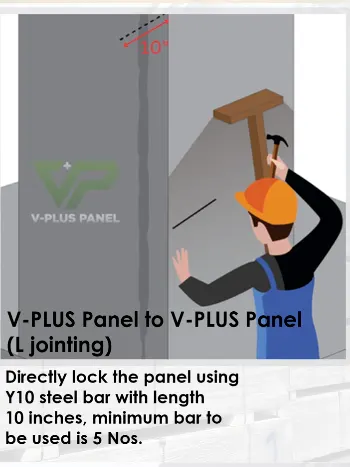

METHOD B
Installation with reinforcement bar
Pros and Cons
- Commonly used in Malaysia ALC Panel market
- Suitable for cost sensitive marketing
- BENEFIT: Even though cost effective, but it also have Professional Engineer endorsed detailing
- BENEFIT: Less dependent on single source supplier
METHOD B
Installation with reinforcement bar
Pros and Cons
- Commonly used in Malaysia market
- Suitable for cost sensitive marketing
- BENEFIT: Even though cost effective, but it also have Professional Engineer endorsed detailing
- BENEFIT: Less dependent on single source supplier
Full Method Statement
Download the full method statement for detailed guidance.

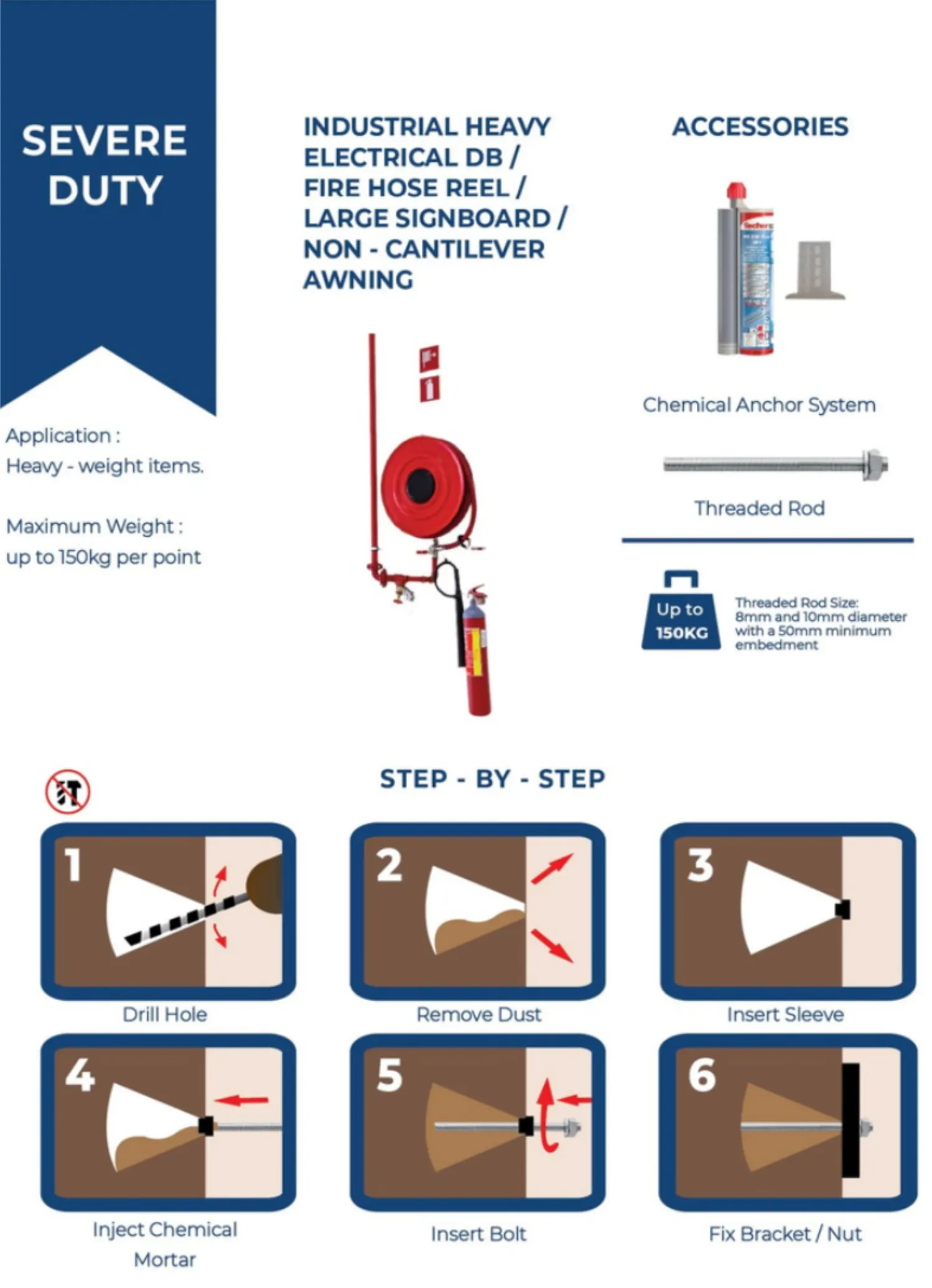

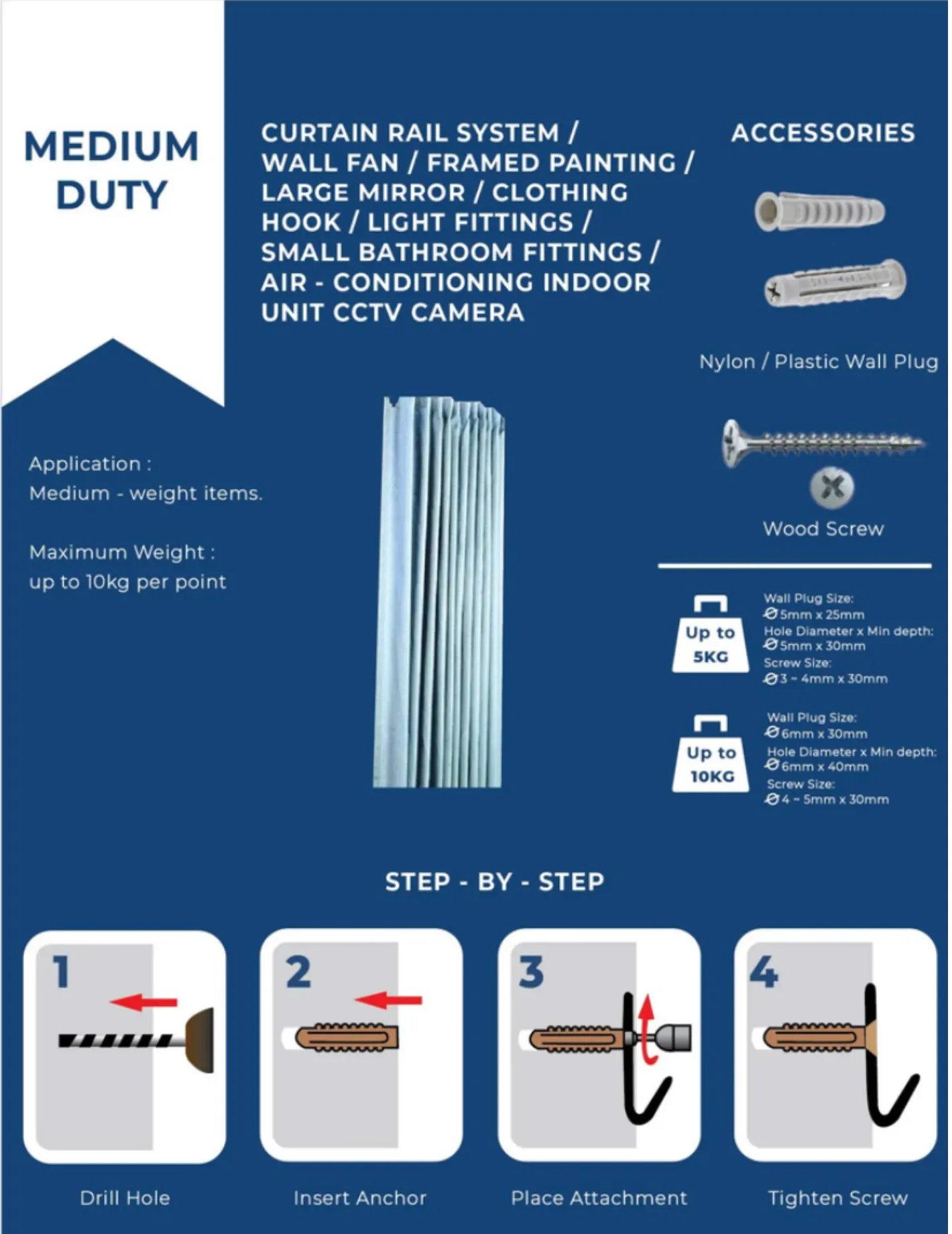

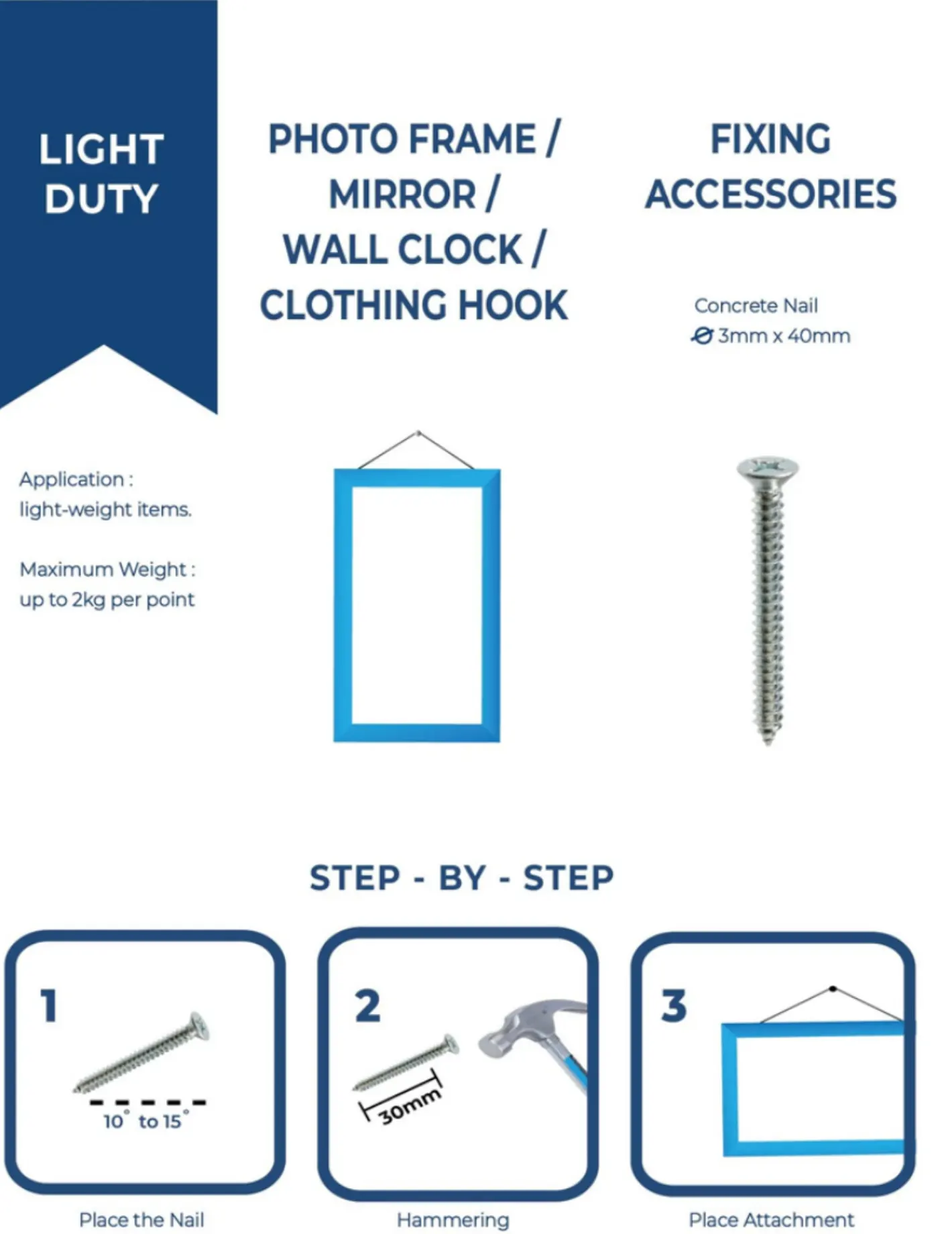

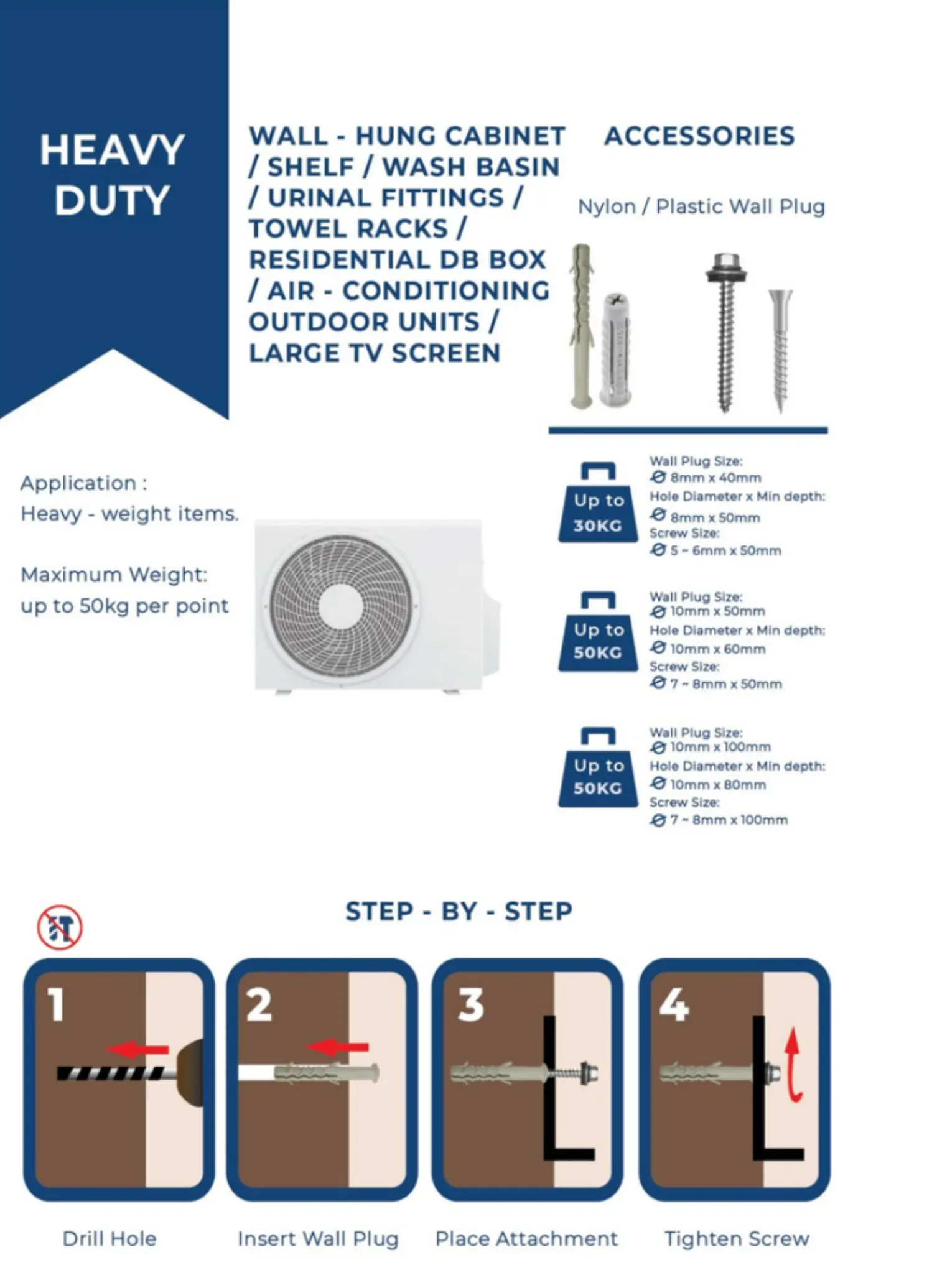

Does vPANEL ALC Panel wall allow hanging of things?
Yes! And there are 4 method, depending on the weight capacity per hanging pojnt :
vPANEL System Advantage
SOLUTION : Finishing & Accessories Included in Pricing
| Competitor Quotation | VODAPRUF Quotation |
|---|---|
| ALC Panel $ xx/m2 | ALC PANEL $ yy/m2 (All Inclusive) |
| Skim Coat $ a/m2 | |
| Jointing MOrtar $ b/m2 | |
| vNail $ c/m2 |

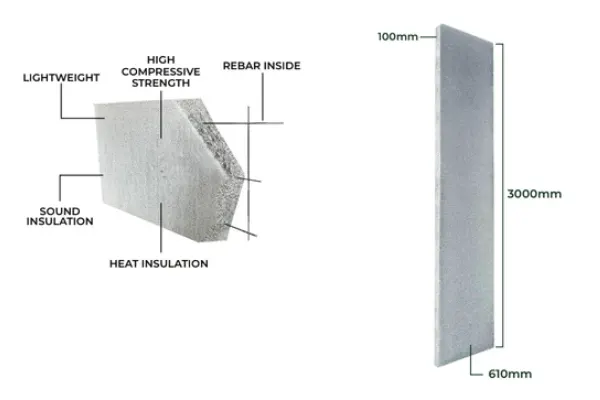

ALC Panel Technical Specifications
| Specification | Value |
|---|---|
| Dry Density (kg/m³) | 500 |
| Wet Density (kg/m³) | 600 |
| Weight (kg/m²) | 48 |
| Thickness (mm) | 100 mm |
| Panel Width (mm) | 610 mm |
| Maximum Panel Length (mm) | 3000 mm |
| Sound Transmission (STC, ISO 140-3:1995) | Up to 45 STC (10 mm plaster both sides) |
| Thermal Conductivity (W/(m·K)) | 0.1375 |
| Strength & Robustness (BS 5234 Part 2) | Pass |
| Fire Rating (BS 476 Part 22:1987) | 4 Hours |
| Suitable for Wet Areas | Yes |
| Productivity | 25–30 m² per day |
| Concealed Wiring/Ducting & Pipework | After wall installation, surface can be chased. Void within wall to be filled with packing material. |
| Surface Appearance | Thick plaster only |
| Compressive Strength | 3.5 MPa |
| External Wall Application | Yes |
Full Test Reports
- Non Combustible Test Report, BS 476 : Part 4
- Compressive Strength Report, BS EN 12390-3 : 2009
- Certificate of Conformity, COC Class 2
- Certificate of Conformity, COC Class 1A
- Fire Rating Report, BS 476 : Part 22
- Fire Rating Report with Lintel Stiffener, BS 476 : Part 22
- Water Absorption Test Report, BS EN 772-11 : 2011
- Acoustic Test Report, ASTM E90
- Robustness Test Report, BS 5234
- PE Endorsement
- Malaysia CIDB Certificate
- Malaysia BOMBA Certificate
- Vodapruf ISO 9001:2015 Certificate
- Singapore Green Building Council Certificate
- Singapore Environment Council, Green Label Certificate
- Leeching Test, US EPA Method 1311 : 1992
- TVOC and Formaldehyde Test, ASTM D5116 - 10
